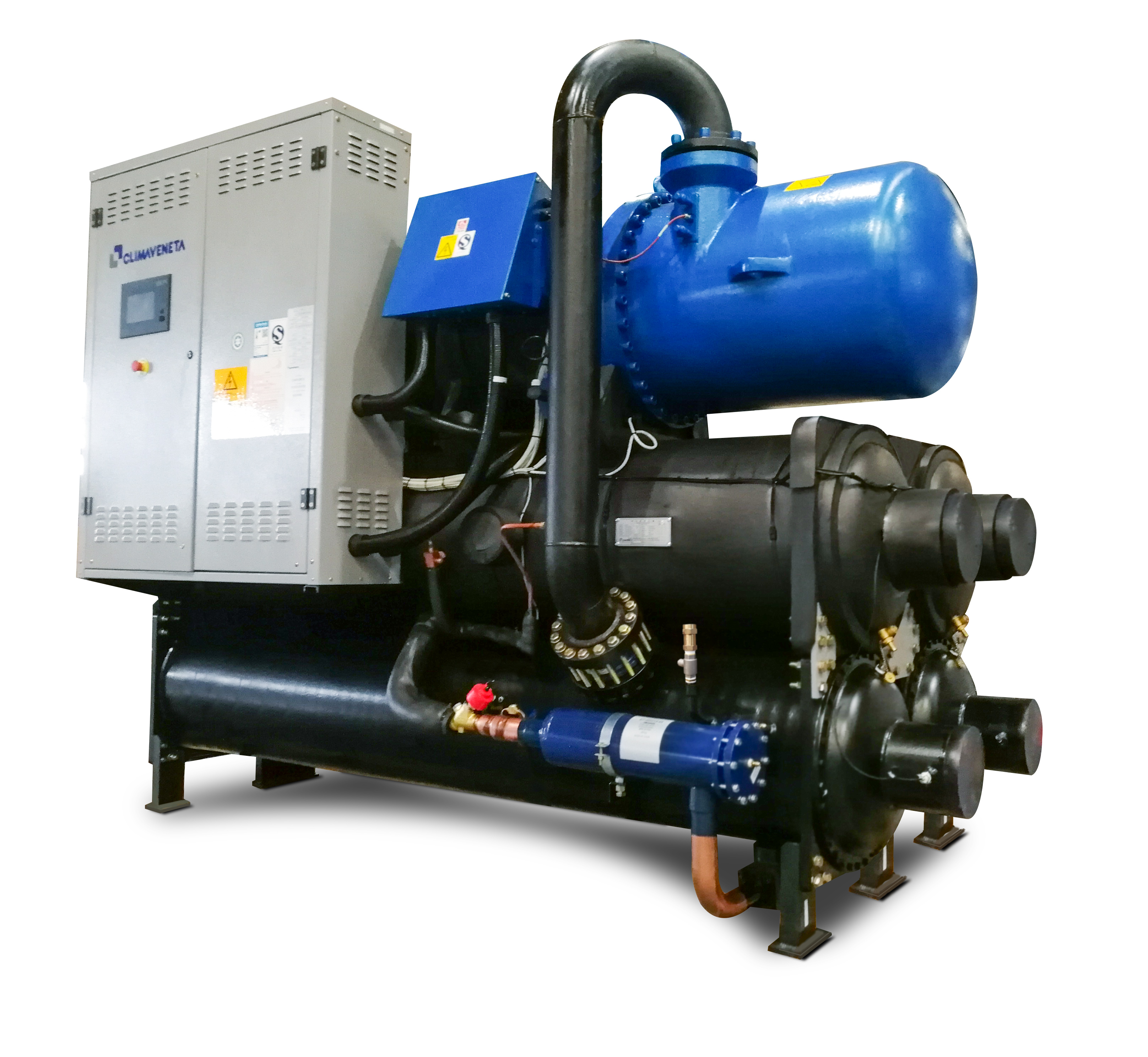

FOCSWATER.E-HL-INV Cooling capacity: 230-1860kW Heating capacity: 240-1940kW FOCSWATER.E-HL-INV Series inverterhigh efficiency water and ground source heat pump with flooded type is newly lauched by CLIMAVENETA, which reaches GB First Class. It's equipped with latest W3000 microprocessor, high efficiency compressor and flooded evaporator, with high efficient inverter, which which promise high-efficiency under both full load and part load operation.It is suitable for occasions with variable population and unstable cooling demand, such as hotels, hospitals, commercial complexes, office buildings and other places.

Extended Functions:

1-Semi-hermetic twin screw compressor 2-R134a Refrigerant 3-Cooling 4—Heating

Frame Structure Description:

■Base and frame in thick hot-galvanised shaped sheet steel. All parts polyesters-painted.

Compressor Description:

■Base and frame in thick hot-galvanised shaped sheet steel. All parts polyesters-painted.
■Compact structure with compressor, evaporator, condenser from top to bottom, and other components are arranged along the periphery of the frame, which is convenient for users to fully understand the operating status of the unit, and it can effectively protect the evaporator and condenser during transportation, installation and daily operation, features convenient maintenance. The unit has been optimized by 3D design, which requires less clearance, smaller footprint, and significantly saves space.


Evaporator Description:

"● The copper tube of flooded type evaporator are completely dipped inside the boiling liquid refrigerant. Thanks to this design, the unit performance and COP are enhanced obviously;
● Super high efficiency copper tube are designed with patent technology. The external screw on the tube increases the evaporation of the refrigerant and is beneficial for the drop condensation, so it reduces the heat transfer temperature difference between tube internal surface and external surface effectively;
● In order to achieve perfect water perturbation and turbulent heat transfer, the internal surface of the copper tube is also special designed;
● Because the chilled water flows inside the tube, it's quite easy to clean and maintenance."

Condenser:


Control Cabinet:

●The unit startup and microcomputer control parts are integrated into the same control cabinet and located at the front of the unit, which is convenient for the on-site operators to operate in the machine room and between the units. The maintenance of all electrical parts can be carried out at the front of the unit.
● The electrical control box is made of high-quality steel plate, and the external surface has been galvanized and anti-corrosion treatment, which can effectively protect the electrical components of the unit.
● For the safety of the operator, once the host is powered on, the operator will not be able to open the isolation board between the control and electrical components to ensure the safety of the operator. The control panel is equipped with an emergency stop button, the operator can quickly press this button to achieve protective measures in the event of an emergency.

Control System:

The unit adopts a new control system with a friendly humanmachine interface, excellent controls and adjustments ability, strong capabilities of function expansion, monitoring and management, as well as strong compatibility. The chiller also contains several optional accessories, and adds remote and group control functions.
■Friendly human-machine interface:The operation screen is embedded in the unit for easy operation and good protection. The automatic control by the computer realizes unattended operation. LCD screen can display data and parameter adjustment in various languages and menus. According to the tradition of Climaveneta, the status and parameters of the compressor are visually displayed individually to make sure the operating status clear at a glance.
■Unit control and operation management:The advanced microcomputer intelligent control system of W3000 contains specially designed control algorithm of Climaveneta. It highlights the energy efficiency and reliability of the unit. The balanced running time of FIFO compressor prolongs the life of machine. The automatic adjustment of the output load makes the machine more energy saving. Combining with the load shedding system of the compressor can achieve 25-100% stepless adjustment. The adjustments and settings of the operating parameters can adapt to different environments. The temperature and pressure protection using analog measurement can predict and prevent of failure and increase reliability.
■Network communication and building management control: The chiller supports BMS connection and can connect to common BMS systems such as Climaveneta, De’Longhi, MODBUS, LONWORKS, BACNET and so on.
■FWS network server:Microcomputer intelligent controller can be equipped with FMS network server to monitor, set and adjust parameters and control the unit operation through LAN or Internet.
■Fault protection, alarm and analysis capabilities: The microcomputer intelligent controller contains perfect functions of fault protection, alarm, recording and analysis. It has protection functions of high/low pressure switch, lack of phase, reverse phase, overload, overcurrent, overheat, exhaust temperature, water flow, frost and so on. The controller also achieves fault recording and alarm display. The unique “Black Box” fault recording and analyzing system can record 400 failures and more than 200 field data before each failure. It can diagnose and remove faults rapidly to improve the technical support effect. By connecting to the Climaveneta remote service program, it can find potential failures before they occur and take proper preventive treatments.


Certification and Honor:


Electric Control:


Cooling Capacity range 230-1860KW
Heating Capacity range 240-1940KW
Compressor type hermetic scroll compressor
Number of compressors 1-2
Refrigeration circuit independent refrigeration circuit
Refrigerant R134a
Power Input 380V/3Ph/50Hz
