FOCSWATER Series - Flooded Screw
FOCSWATER Series - Flooded Screw
FOCSWATER Series Cooling capacity:2132kW-3400kW The CLIMAVENETA PIONEER series FOCSWATER large ca[acity fixed speed screw chiller meets the national energy-saving product level requirements. The newly developed W3000 Chinese microcomputer controller, HFC134a refrigerant, and new high-efficiency heat exchanger are used to optimize the matching of the system. It integrates the characteristics of high efficiency, energy saving, environmental protection, stability and reliability, and compact structure. It can be widely used in shopping malls, Hospitals, hotels, factories, office buildings and other different types of buildings.

Extended Functions：

1-Semi-hermetic twin screw compressors 2-Refrigerant:HFC R-134a 3-Cooing 4-total heat recover

Frame Structure Description：

1.The frame and base in thick hot-galvanised shaped sheet steel.All parts polyesters-painted, so that the whole unit should not easy to rust.
2.The structure arrangement is convenient, compact and simple.Evaporator and condenser are arranged as upper and lower layers.Other refrigeration parts are arranged along the periphery of the frame, which is convenient for users to fully grasp the operating status of the unit.It can effectively protect the evaporator and condenser during transportation, installation and daily operation, and make maintenance more convenient. The layout of the unit has undergone three-dimensional optimization design, and the layout is compact. The optimized shape requires less maintenance and inspection space, occupies a small area of the machine room, and significantly saves space.

Compressor Description：

1. Semi-hermetic twin screw compressors with special designed for HFC 134a,featuring in high efficiency compression and operation under full load and part load condition;
2. Precisely manufactured twin rotor and aerospace-grade bearing result in reliable performance, low noise and stable operation;
3.The compressor has a built-in three stage high efficiency oil separator, which ensures a very high oil separation effect even at very high exhaust speeds. By improving the oil supply and lubrication method, the exhaust oil content and exhaust superheat are effectively reduced, thereby further improving Oil separation effect.
4.Cooperate with the microcomputer control system, automatically adjust the load output according to the working conditions, realize stepless adjustment through the slide valve, and improve the partial load performance.



Evaporator Description：

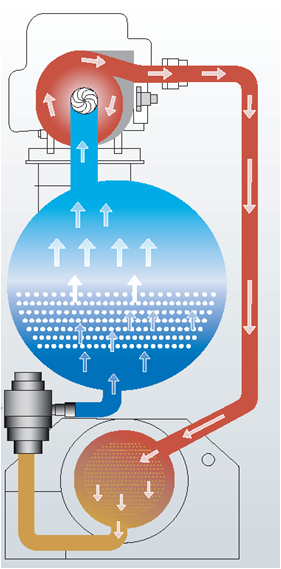

1.The evaporating tube of the flooded high-efficiency evaporator is completely immersed in the boiling liquid refrigerant, which effectively improves the refrigeration capacity and energy efficiency ratio of the unit.
2.The patented design of the ultra-efficient heat transfer tube with rolling threads on the outside of the tube greatly improves the boiling and evaporation of the refrigerant.And it is conducive to bead condensation, significantly reducing the heat transfer temperature difference inside and outside the tube.
3.The enhanced heat transfer inside the tube increases the water side disturbance and turbulent heat transfer.
4.Chilled water flows inside the tube for easy cleaning and maintenance.

Condenser：

1.The shell and tube heat exchanger adopts high-efficiency double-threaded copper tubes, which improves the heat exchange effect between the refrigerant on the shell side and the cooling water on the tube side, and the heat exchange efficiency is about 30% higher than that of ordinary heat transfer copper tubes.
2.The condenser adopts a unique air intake method to evenly distribute the refrigerant flow, prolong the condensation distance, and achieve the best heat exchange effect. It also increases the subcooling degree of the unit, which can effectively improve the cycle efficiency of the unit.
3.The design, manufacture and inspection of the condenser comply with national standards and regulations for pressure vessels such as GB / 150 steel pressure vessels and JB / 4765 pressure vessels for refrigeration devices.

Control Cabinet：

1.The unit startup and microcomputer control parts are integrated into the same control cabinet and located at the front of the unit, which is convenient for the on-site operators to operate in the machine room and between the units. The maintenance of all electrical parts can be carried out at the front of the unit.
2. The electrical control box is made of high-quality steel plate, and the external surface has been galvanized and anti-corrosion treatment, which can effectively protect the electrical components of the unit.
3.For the safety of the operator, once the host is powered on, the operator will not be able to open the isolation board between the control and electrical components to ensure the safety of the operator.

Control System：

● New generation regulation system with human-computer interface, better extended utility, supervision and compatibility.

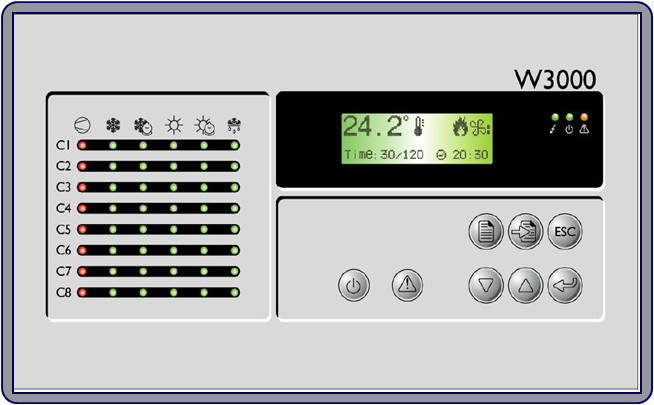

● Panel screen on the unit, easy operation, better protection Microprocessor regulation fulfill human-free running.
● W3000 with LCD display, multi-language & multilevel menu for data display & set-point regulation . According to CLIMAVENETA tradition, another display of compressor’ working data is adopted for easy supervision.
● Dedicated W3000 microprocessor is inserted with CLIMAVENETA control algorithm to make sure energy saving and reliability.
● FIFO compressor running time balance function extends unit’ working life;
● Auto compressor power input control following with load change from 25-100% for energy saving;
● Environment adaptation by data regulation and setting;
● Modulating measurement is used for temperature pressure protection. It can increase reliability and predict fault occurs.
● Expansion kit for remote control and group control.
● Available in BMS control, such as ModBus, LonWorks, BacNet control system.
● Microprocessor have complete fault predict, alarm, record and self diagnose function assuring operation protection & working state.
● “Black Box” record 400 faults and 200 data before each fault, which diagnose & remove fault quickly
● We also can find potential fault and take preventive action before it occur by CLIMAVENETA remote service program



Certification and Honor：

Electric Control：

：

：

：

：

：

Cooling Capacity 180kW-3400kW
Compressor type Semi-hermetic twin screw compressors
Number of compressors 1-4
Refrigeration circuit Independent
Refrigerant R134a
Power Input 380-3Ph-50Hz
