CSRAN Series - Screw R22
CSRAN Series - Screw R22
CSRAN Series Cooling capacity: 120～1100kW Heating capacity：130～1240kW The air-cooled heat pump unit is a central air-conditioning unit with air as the cold and heat source and water as the cooling medium, which meets the annual cooling and heating needs of the building or process system. The unit can be directly installed on the roof or outdoor space, without special machine room, without cooling tower, cooling water pump and cooling water pipeline system. The whole system has simple structure and convenient application, and can be widely used in shopping malls, hospitals, hotels, factories, office buildings, etc. type of building. CLIMAVENETA air-cooled heat pump units include standard hot and cold water units for central air-conditioning applications, as well as chillers for partial heat recovery and full heat recovery for waste heat utilization, as well as for high-temperature and high-efficiency environments with high noise requirements. High-efficiency units and low-noise, ultra-low-noise units meet various needs of users. CLIMAVENETA's advanced heat recovery technology maximizes the use of energy and protects the environment. CLIMAVENETA multi-functional heat pump unit meets the diverse needs of users and greatly facilitates users.

Extended Functions：

—D Partial heat recovery —R Total Heat Recovery —Q 4-pipe Unit —B Standard Unit -HT High Efficiency Unit -HL High efficiency low noise Unit -LN Low Noise Unit -SL Super Low Noise Unit

Frame Structure Description：

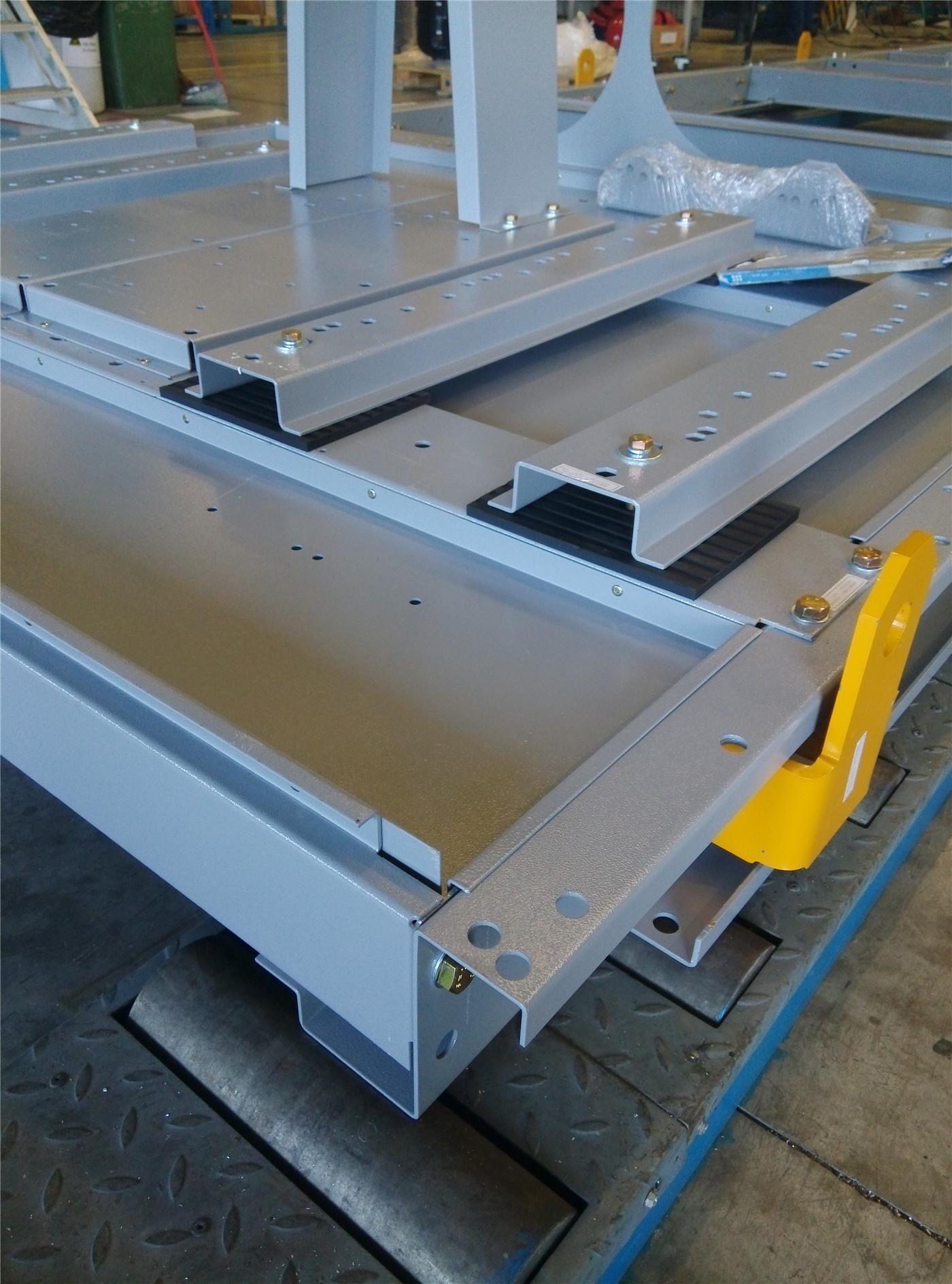

Base and frame in thick hot-galvanised shaped sheet steel. All parts polyesters-painted.

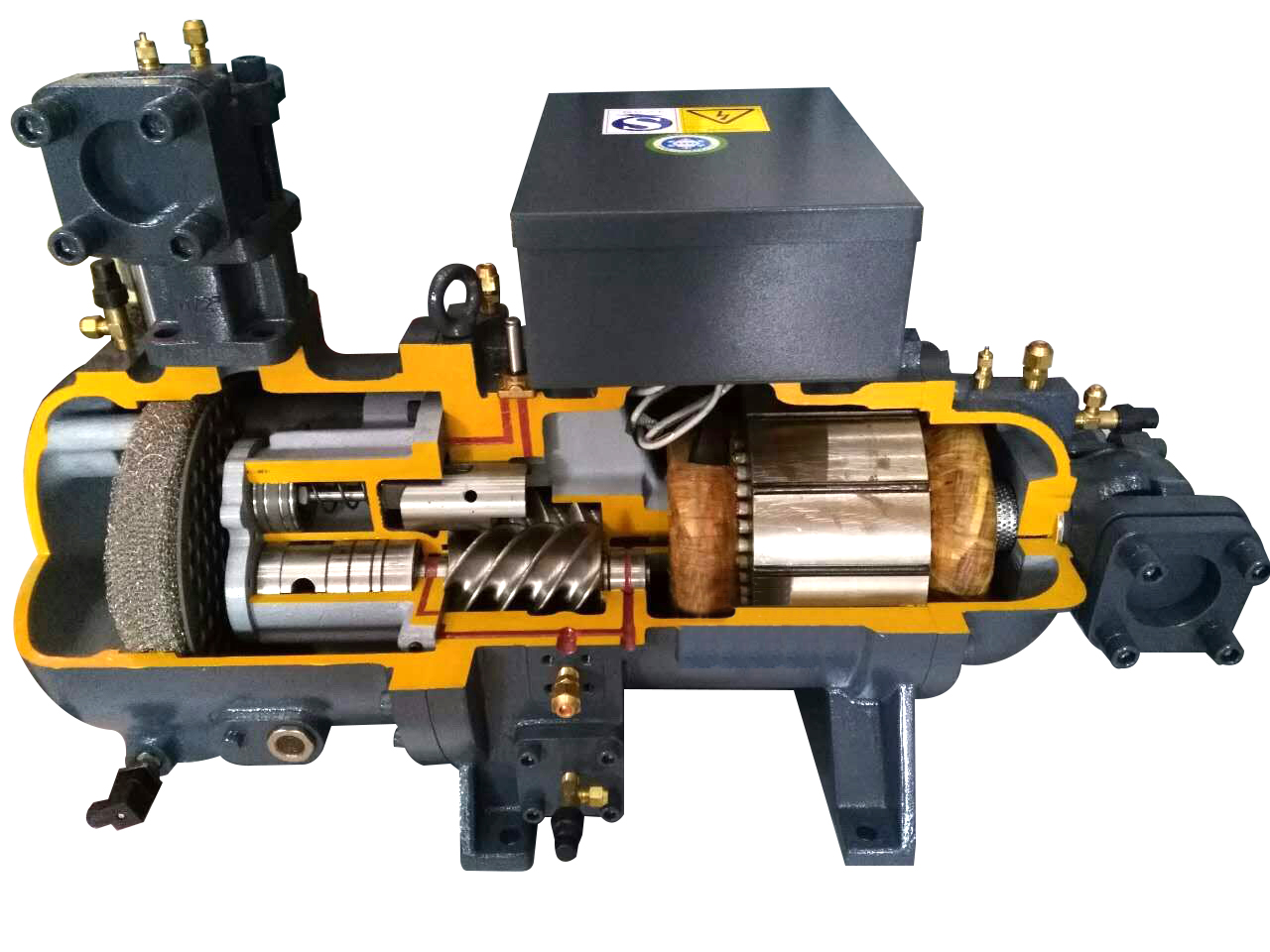

Compressor Description：

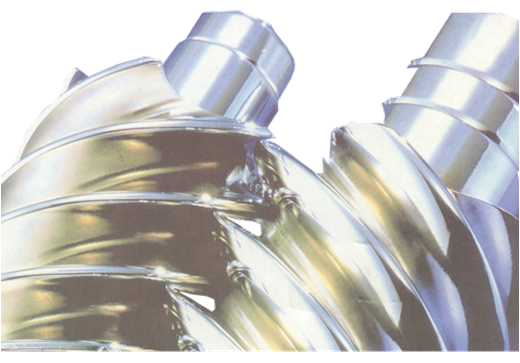

● Screw: The semi-hermetic twin-screw compressor not only runs smoothly, but also has a precise compressor rotor clearance, which minimizes the leakage on the high and low pressure sides, thereby improving the compressor efficiency and having a high COP value.
● Swivel bearing: aviation grade bearing, strong and wear-resistant. By optimizing the torque distribution and reducing the front and rear pressure difference, the axial torque and radial torque are reduced at the same time, the bearing force is improved, and the service life is effectively prolonged.
● Oil separator: The compressor has a built-in three-stage high-efficiency oil separator, which ensures a very high oil separation effect even at very high exhaust speeds. By improving the oil supply and lubrication method, the exhaust oil content and exhaust superheat are effectively reduced , so as to further improve the oil separation effect.
● Stepless adjustment: The energy control through the slide valve can make the cooling capacity stepless adjustment in the range of 10%～100%.

Evaporator Description：

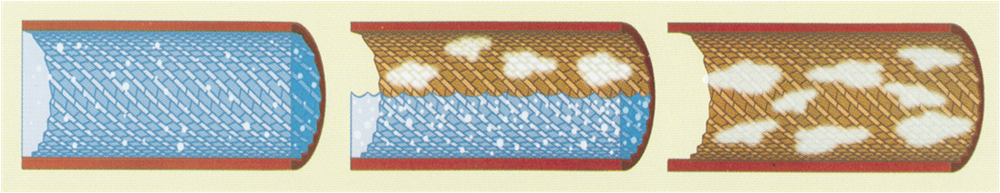

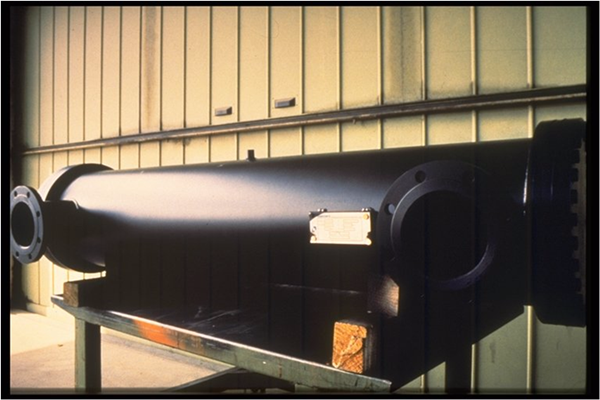

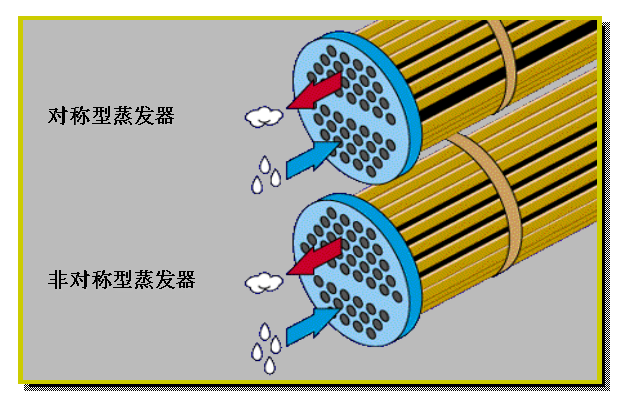

●Direct expansion heat exchanger type with asymmetric refrigerant paths to maintain the correct refrigerant velocity inside the tubes during both liquid and gaseous phases.
●The steel shell is insulated with a closed-cell anticondensation lining. The copper pipes are internally grooved so as to improve the heat exchange. The pipes are mechanically expanded onto the tube plate ends. An antifreeze electric heater prevents the formation of ice inside the casing of the exchanger when the unit is not operating but connected to the electrical supply. Differential pressure switch for controlling the water flow is fitted standard.
●The design, manufacture and inspection of the evaporator comply with national standards and regulations for pressure vessels such as GB / 150 steel pressure vessels and JB / 4765 pressure vessels for refrigeration devices.

Condenser：

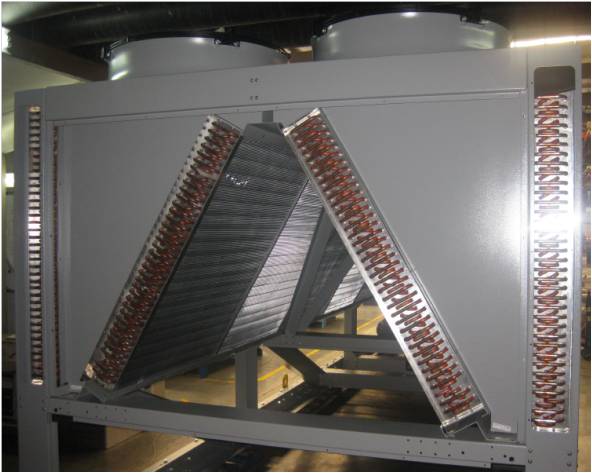

●The inverted M-shaped structure is adopted to increase the heat exchange area on the premise of constant unit volume; Uniform wind speed distribution, high-performance heat exchange, reduced frosting time during heating, and improved heating and defrosting performance;
●The air-cooled condenser adopts the original secondary refrigerant circuit technology, which is composed of copper tubes passing through aluminum fins. The end of the condenser is connected with the auxiliary refrigeration circuit to keep the refrigerant in a supercooled state, and internal threaded pipes are used to increase the heat exchange area. and perturbation of Freon;
● With corrugated sheet design, the condenser of the unit is not easy to be blocked, the maintenance cost of the unit is reduced and the service life is longer; The aluminum sheet adopts thickened design, which is not easy to collapse;

Control Cabinet：

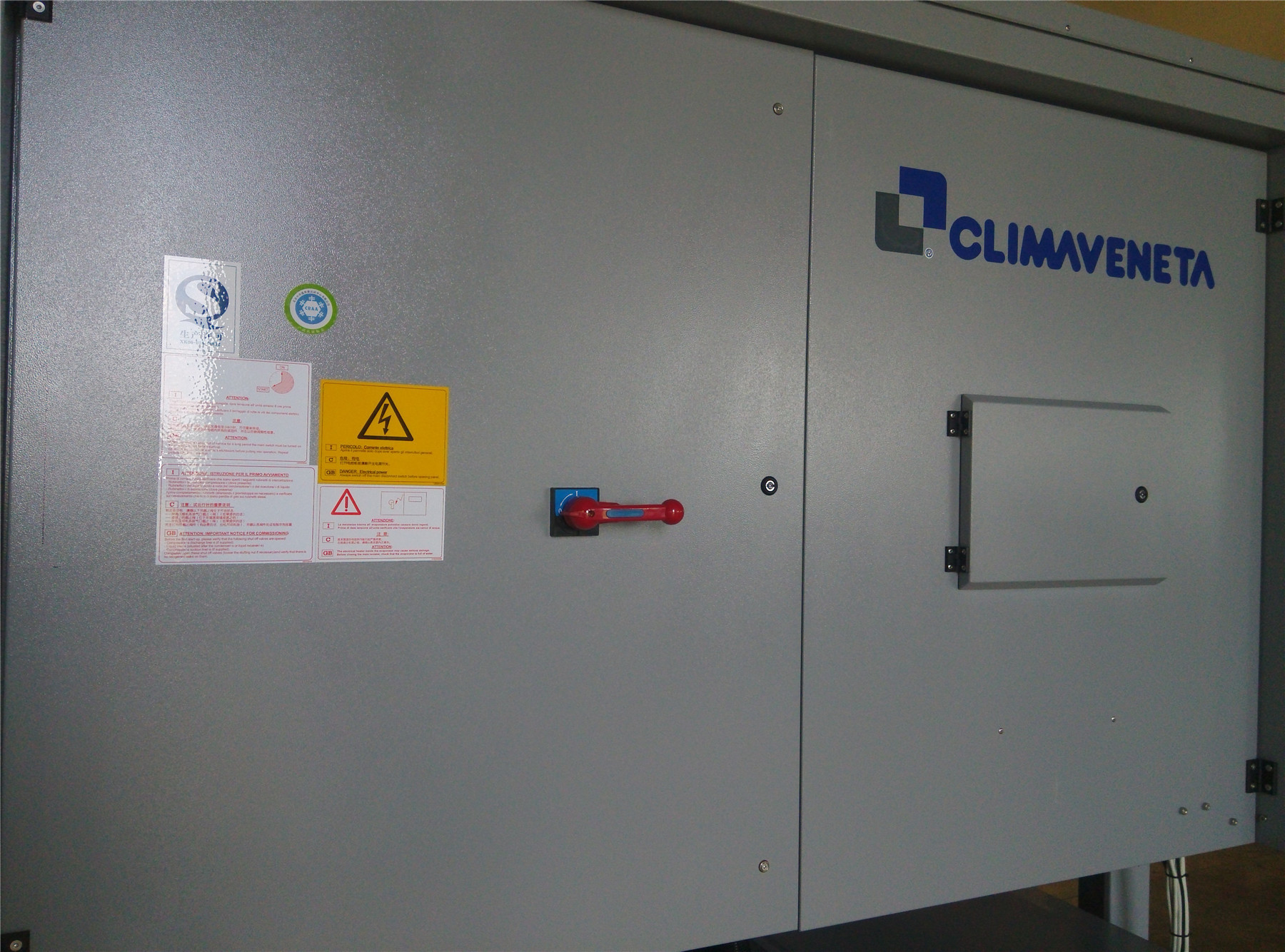

●The unit startup and microcomputer control parts are integrated into the same control cabinet and located at the front of the unit, which is convenient for the on-site operators to operate in the machine room and between the units. The maintenance of all electrical parts can be carried out at the front of the unit.
● The electrical control box is made of high-quality steel plate, and the external surface has been galvanized and anti-corrosion treatment, which can effectively protect the electrical components of the unit.
● For the safety of the operator, once the host is powered on, the operator will not be able to open the isolation board between the control and electrical components to ensure the safety of the operator.

Control System：

● New generation regulation system with human-computer interface, better extended utility, supervision and compatibility.
● Panel screen on the unit, easy operation, better protection Microprocessor regulation fulfill human-free running.

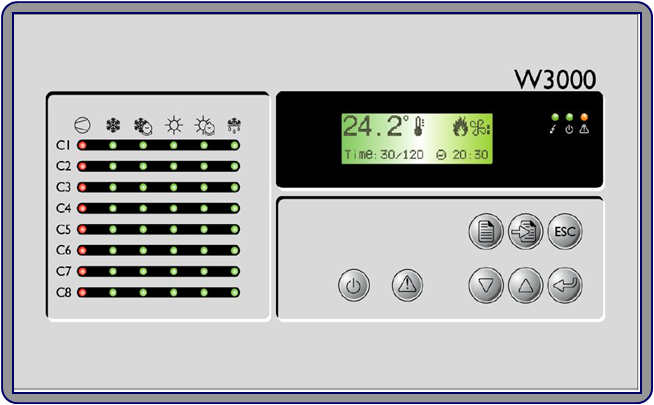

● W3000 with LCD display, multi-language & multilevel menu for data display & set-point regulation . According to CLIMAVENETA tradition, another display of compressor’ working data is adopted for easy supervision.
● Dedicated W3000 microprocessor is inserted with CLIMAVENETA control algorithm to make sure energy saving and reliability.
● FIFO compressor running time balance function extends unit’ working life;
● Auto compressor power input control following with load change from 25～100% for energy saving;
● Environment adaptation by data regulation and setting;
● Modulating measurement is used for temperature pressure protection. It can increase reliability and predict fault occurs.
● Expansion kit for remote control and group control.
● Available in BMS control, such as ModBus, LonWorks, BacNet control system.
● Microprocessor have complete fault predict, alarm, record and self diagnose function assuring operation protection & working state.
● “Black Box” record 400 faults and 200 data before each fault, which diagnose & remove fault quickly
● We also can find potential fault and take preventive action before it occur by CLIMAVENETA remote service program



Certification and Honor：

Electric Control：

Innovative Intelligent Defrost Function (CLIMAVENETA Patent)：

The reverse cycle type intelligent defrost function introduce the self-adjust technology which can automatically modify and regulate the judgement and data for next defrosting according to the change of ambient air temperature, humidity and defrost time as well as the difficult level of last defrosting. So the defrost no longer need manual adjusting and it can be fit for all kinds of weather condition. Much precise, reliable and energy saving from traditional defrosting method.

low noise：

1. The fan adopts a specially designed low-noise air guide;
2. Each compressor adopts special vibration damping support to reduce the transmission of vibration.
3. The compressor is installed in the compressor soundproof cover to effectively reduce noise transmission
4. You can also choose LN (low noise) and SL (Super low noise) units

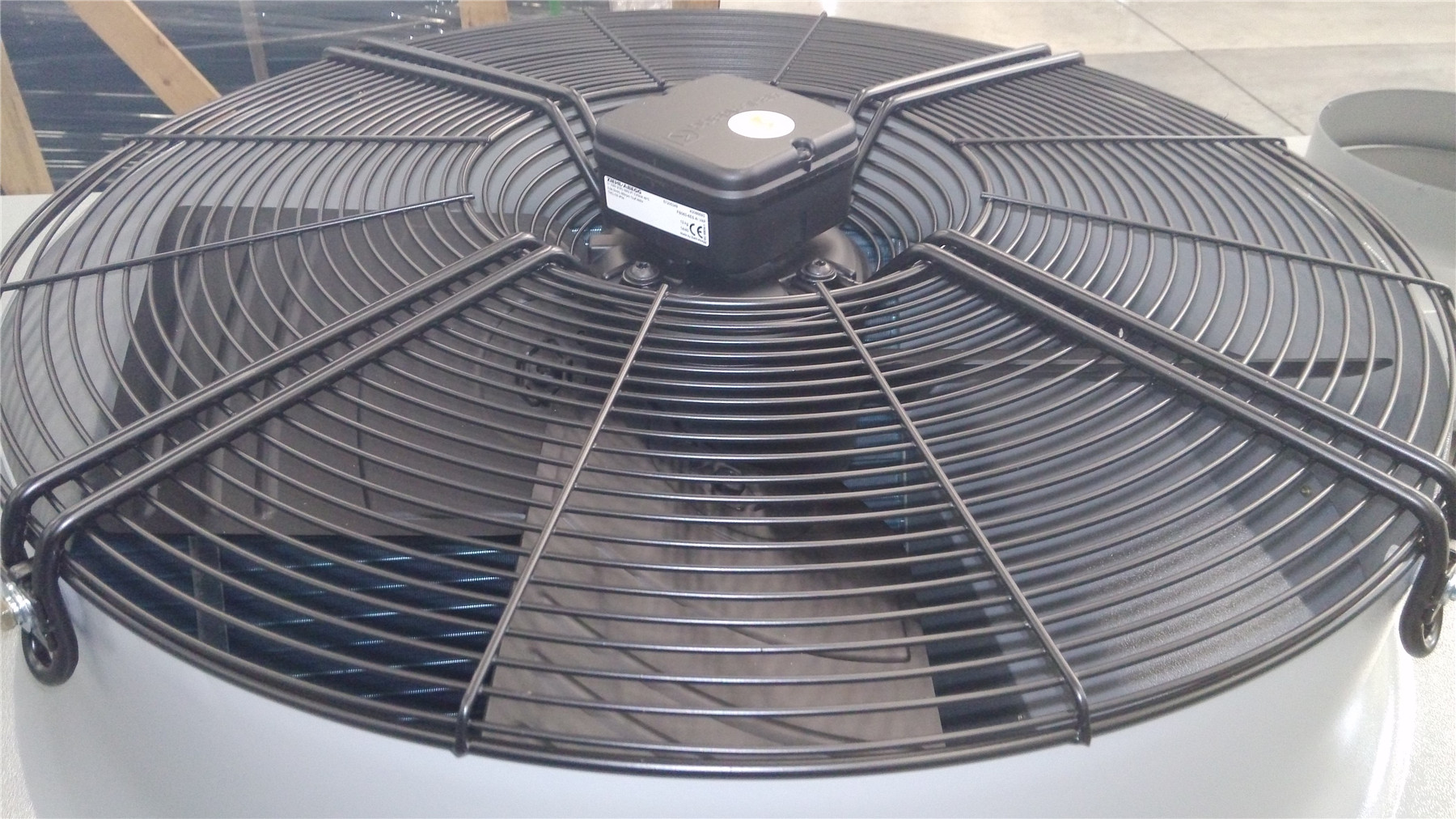

High Performance Fan：

High efficiency exterior rotor fan from German brand with variable speed controller. It can change fan speed automatically (DVV design) to reduce energy consumption and fan noise.

：

：

Cooling Capacity 120-1100KW
Heating Capacity 130-1240KW
Compressor type Semi-hermetic double screw compressor
Number of compressors 1-2
Refrigerant R22
Power Input 380-3Ph-50Hz
‎State Grid Chongqing Zhiwang Science and Technology Comprehensive Office Building‎

‎State Grid Chongqing Zhiwang Science and Technology Comprehensive Office Building‎

Area：Chongqing‎
Cooling Capacity：4800kW
Period：2021
Heating Capacity：5000kW
Building Function：Office Buildings
System：
Installed Units：
2 x ERACS3622E-N-D-B 1 x ERACS3602E-N-B 2 x ERACS3622E-N-B 52 x MFC 900 x FCU
Jiangbin square, Sanming Hotel, Fujian Province

Jiangbin square, Sanming Hotel, Fujian Province

Area：Fujian
Cooling Capacity：13400kW
Period：2019
Heating Capacity：15400kW
Building Function：Hotel&Resorts
System：
Installed Units：
3 x TECS-W3902L-E 2 x ERACS5422E-N-R-SL
Fuding City Hospital Baisheng New area phase I

Fuding City Hospital Baisheng New area phase I

Area：Fujian
Cooling Capacity：3575KW
Period：2018
Heating Capacity：3711KW
Building Function：Healthcare / Hospitals
System：
Installed Units：
2X ERACS1702E-Q 2X ERACS1912EQB 2X ERACS2402E-Q 1X ERACS3622E-N-B
Vanke · Cuihu International

Vanke · Cuihu International

Area：Beijing
Cooling Capacity：6900kW
Period：2019
Heating Capacity：7300kW
Building Function：Office Buildings
System：
Installed Units：
2x ERACS2722E-N-B 2x ERACS4822E-N-B 2x ERACS3622E-N-B 2x ERACS2402E-N-B
beijing Miyun Gubei Shui Town

beijing Miyun Gubei Shui Town

Area：Beijing
Cooling Capacity：5100kW
Period：2013
Heating Capacity：5600kW
Building Function：Residential buildings
System：
Installed Units：
2x Eracs 2422-SL 2x CSRAN1062-Y-SL 16x AQS 0182-N-LN 4x CSRAN 1562-Y-B 2x Eracs 3222-SL 1x Eracs 2722-SL
